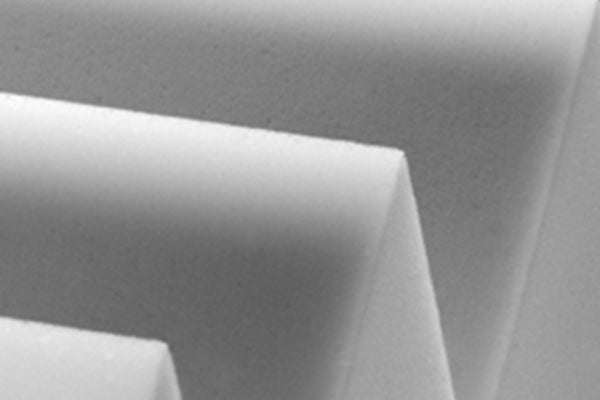

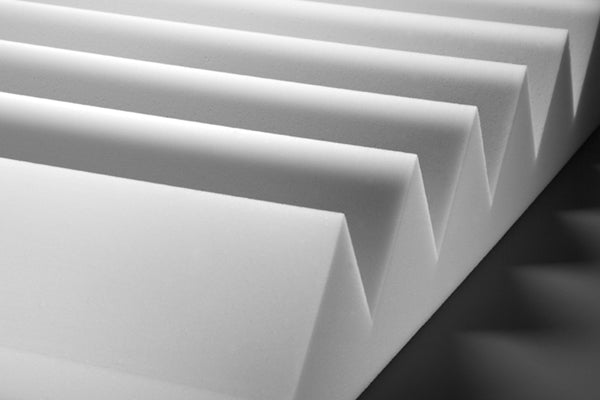

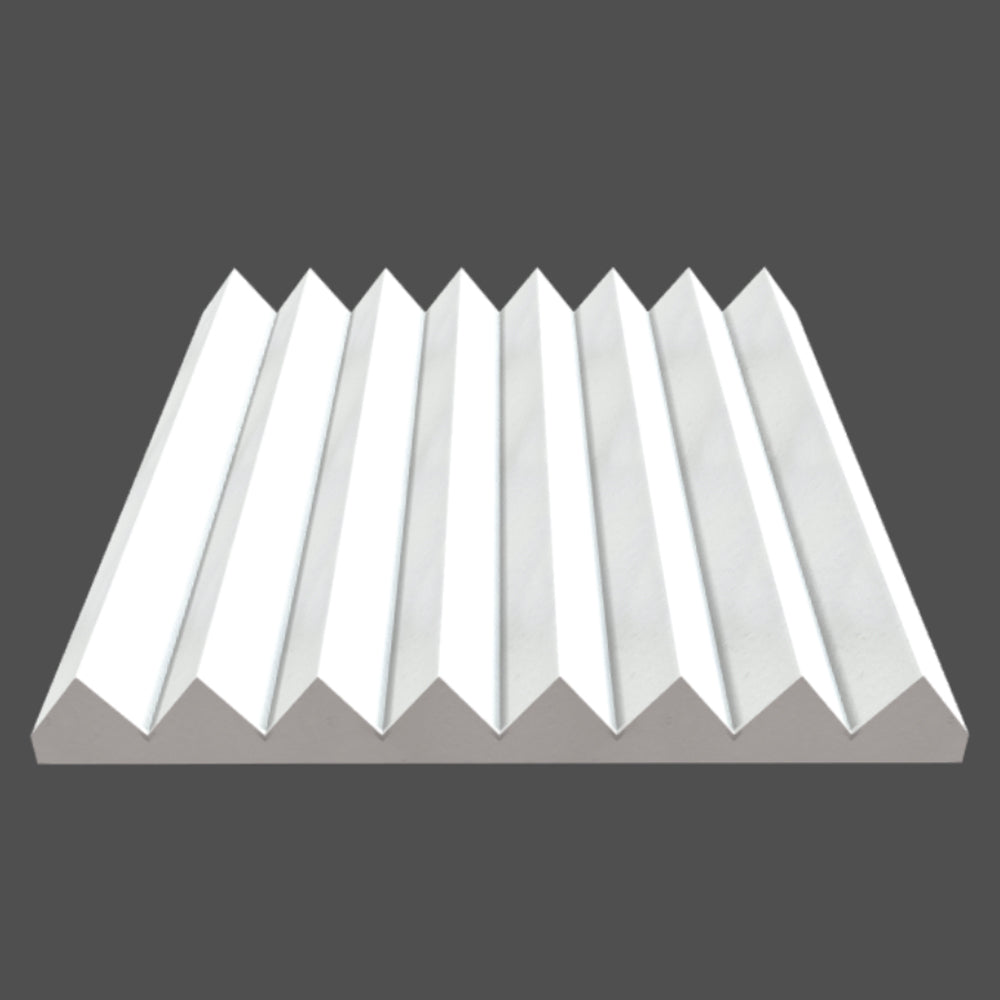

Triangular Acoustic Wedge Panels

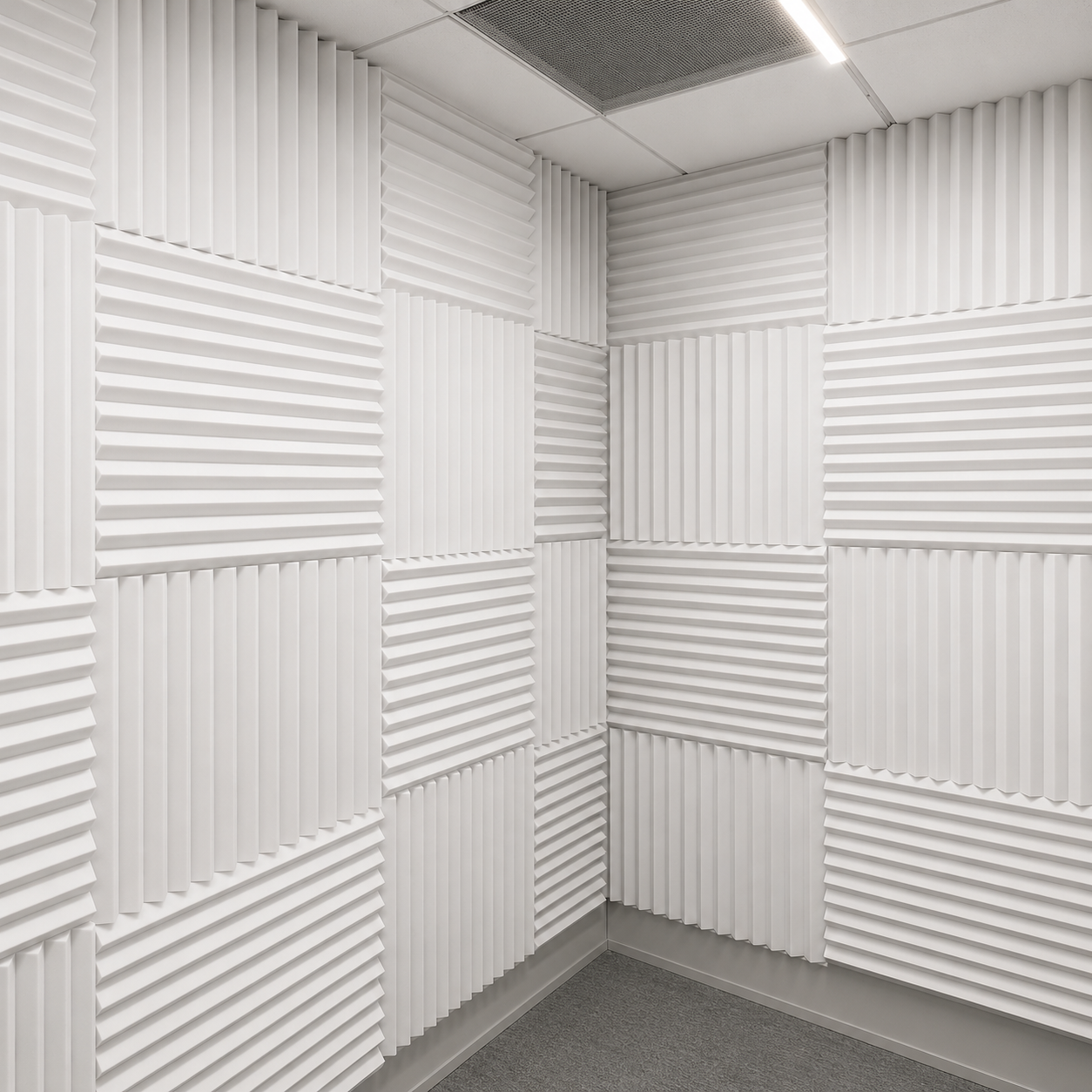

The Triangular Acoustic Wedge Panels can be direct-applied to ceilings, can be laid in pre-engineered suspension systems and adhered to walls, the latter being their most common application.

Part Number: TA-007-1
Get A Quote
View full details

Whether you’re planning a new facility or renovating an existing one, TECLITE® Triangular Wedge Panels are guaranteed to enhance the acoustical signature of the space. The Triangular Wedge Panels were designed based on the needs of reinforced live sound and accommodate spaces of all sizes and shapes.

TECHLITE® Triangular Wedge Panels optimize sound wave propagation by providing proper sound absorption, and to a lesser extent sound diffusion, for spaces such as rehearsal rooms, music and band practice rooms, movie theaters, classrooms, recording studios and any large performing arts center. Whatever the facility, TECHLITE® provides innovative solutions and products designed specifically for the needs of both the performer and listener. Like our 3-Point Wedge Panels, TECHLITE® Triangular Wedge Panels are designed to mitigate acoustical concerns in large volume, sound-reinforced, noise-sensitive spaces.

The Triangular Wedge Panels come standard at 2″, 3″ and 4″ thick. Their sound absorptive acoustical performance in the low frequencies is superior to competitor’s products. At 4″ thick, our Wedge Panels test results boast a Noise Reduction Coefficient (NRC) 1.05 and are 33% absorptive at 125 Hertz in accordance with ASTM C 423-17 Standard Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method.

Our Wedge Panels can be fabricated to suit a wide range of sizes and have the ability to be painted any one of 1,500+ colors. Creative wall and ceiling features can be designed into any interior scheme, and can be arranged to create various architectural patterns and effects. For example, wall treatments can be designed with hidden LED backlighting for unique interior design elements. The Wedge Panels integrate exceptionally well with interior building mechanical, electrical and plumbing systems and can be very easily fabricated in the field.


The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Acoustic Foam Sound Absorption Chart

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TECHLITE foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TECHLITE is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell, fiber-free
  • Very lightweight, easy install with construction adhesive or magnetic strip
  • Architecturally intriguing, provides the look of acoustics
  • Painted 1 of 1,500+ colors with acoustically-transparent paint
  • Acoustically tested in accordance with ASTM C423-17 for Sound Absorption
  • Class A fire-rated per ASTM E 84
  • Highly sound-absorptive (NRC 1.05 at 4″ thick)
  • High Light Reflectance
  • LEED points


Uses and Applications

  • Editing Suites, Vocal / Isolation Booths
  • Auditoriums, Theaters
  • Performing Arts Centers
  • Music Classrooms, Band Practice / Choral Rooms
  • Gymnasiums
  • Lecture Halls
  • Large arenas, stadiums


Specifications

  • Size: 24" x 24", Custom
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Thickness: 2", 3", 4", Custom
  • Material: TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
